Automatic Extra Long Stroke Bolt Making Machines
Rod Headers
Screw Straightening Machines
Spoke Machines
Nipple Machines

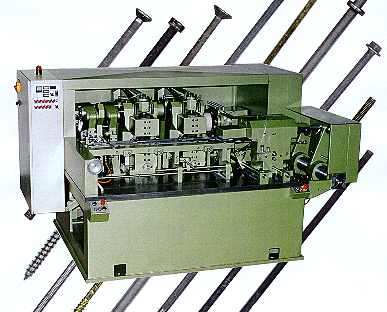

Model BM-6-400 Automatic machinery for long bolts wire feed and cutoff cutting to exact length pre-heading finish heading thread rolling These machines automatically produce long screws from wire coil to finished product.   Model Dia. Length Speed BM-6 M6 100-400 mm 140-160 ppm BM-8 M8 150-600 mm 120-140 ppm BM-10 M10 180-1000 mm 60-100 ppm

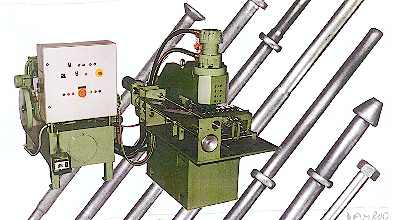

Hydraulic Rod Header Model HRH-14 Single / Double stroke Open die Up to M14 x 700 mm (1/2"x28" long) Output 36 ppm

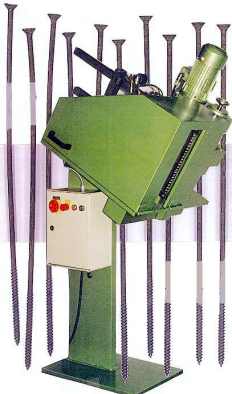

Screw Straightening Machines Model RIM M6 x 400 mm Long Output 60 ppm

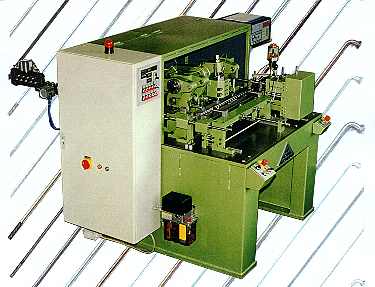

Automatic Spoke Machine Model SPM Wire 4 mm Length 125 - 315 mm Output 300 ppm

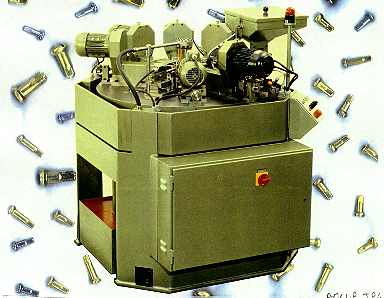

Automatic Nipple Machine Model NA Output 90 ppm
