Hilgeland-Nutap
High Speed, High Precision,
Two Spindle, Automatic Nut Tapping Machines
|
|
|
|

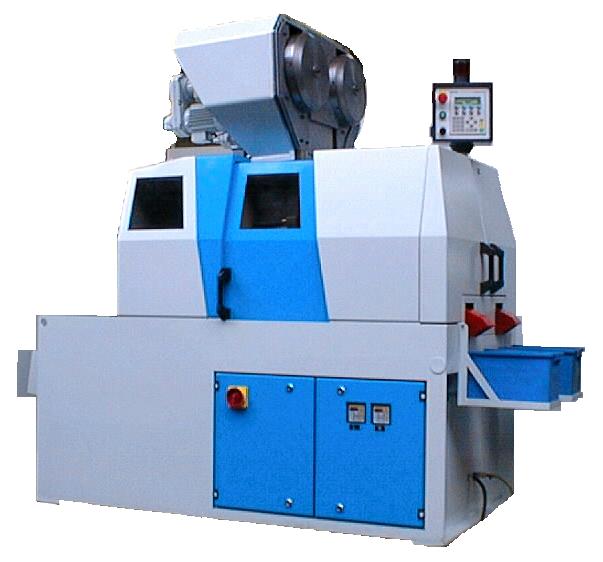

MAS-F High Speed, High Precision, Two Spindle, Automatic Nut
Tapping Machine
 | Three models available |
| Range M2-M24 |
|

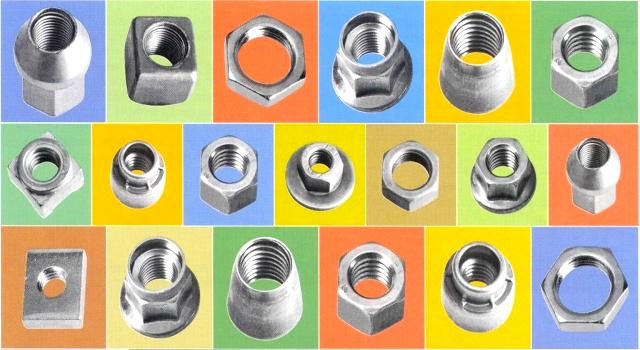

| Hex, square, flange, round, 12 point, Wheel, and special nuts |
| Pitch cam feed control |
| PLC control |
|
| Process tap monitoring |
|
| Very low T.I.R. and tight thread tolerances | | | |
| MODEL |
MAS-6F |
MAS-14F |
MAS-24F |
| Size range |
M2-M6 |
M6-M14 |
M12-M24 |
| Max. Outside Diameter |
15mm |
30mm |
50mm |
| Max. A/F - Square |
10mm |
21mm |
35mm |
| Max. A/F - Hex |
13mm |
24mm |
42mm |
| Max. A/F - Octagonal |
13mm |
27mm |
44mm |
|
 |

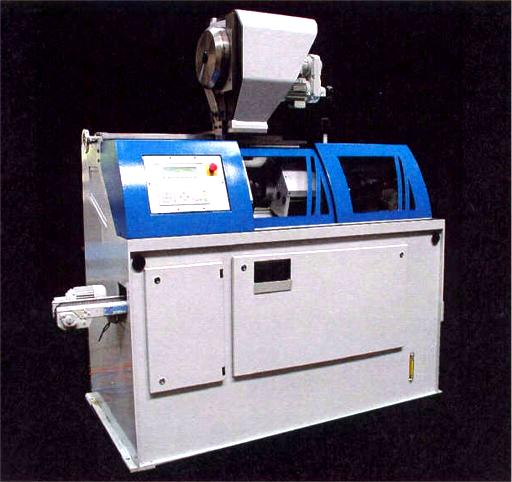

UNT High Speed High Precision Single Spindle Automatic Reversing Nut
Tapping Machine
|
|
Two models available|
|
Range M3-M20 dia. |
|
In-Out Tapping |
|
| PLC control |
|
| Process tap monitoring |
| |
| MODEL |
UNT-12 |
UNT-20 |
| Size range |
M3-M12 |
M8-M20 |
| Max. Outside Diameter of parts |
35mm |
50mm |
| Length of Parts |
50mm |
70mm |
| Max. Spindle Stroke |
120mm |
150mm |
| Output |
60ppm |
55ppm |
|
 |

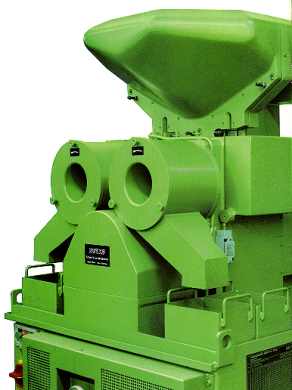

MAS nV High Speed Double Spindle Nut Tappers
|
| Four models, capacity range M4-M52 (5/32" - 2") |
| Hex, square, flange, and round nuts |
| Extremely high speed |
| Large hopper with capacity up to 300 pounds |
| Trouble free feeding of even thin nuts | | | | |
|
 |
|
