Two and Three Die Cylindrical Thread Rollers
In-feed / Through-feed Machines
Specialty Machines for Ball Studs, Burnishing, and Threading
Automatic Pulley Forming Machines
Spline Rolling Machines
Spline Rolling Machines
3 models available
Range 8-65 mm dia.
Rolling lengths up to 100mm
Single revolution dies for fast rolling speeds and high production
rates
High accuracy and tolerances, up to within 0.025mm (0.001")
Three Die Thread Rolling Machines
6 Models available
3 Models specially built for hollow tube & high tensile solid
bar components
Range 8-155 mm dia.
Rolling lengths up to 160 mm
Two Die Thread Rolling Machines
5 Models available
Range 2-80 mm dia.
Rolling lengths up to 220 mm (10m thru-feed)
Machines capable of Infeed and Thru-feed rolling

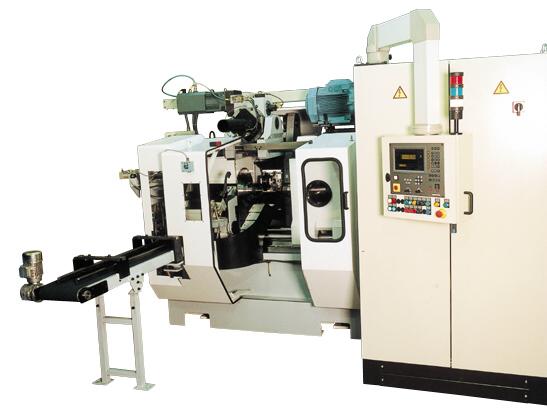

Six Die CNC Pulley Forming Machine Model LAP-6
Range 60-400 mm dia.
Capable to set up with independent strokes and speeds for each die
High accuracy and fast speeds

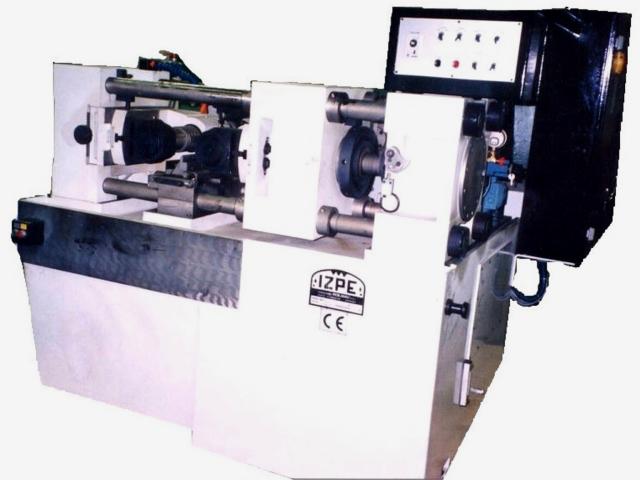

Two Die Thru-feed Rod & Bar Thread Rolling Machines
2 Models available
Range 5-50 mm dia.
Rolling lengths up to 10m
Planetary Straight & Cut & Thread Rolling Machines
2 models available
Range 2-12mm dia
Rolling lengths up to 80mm
Single and Double end products

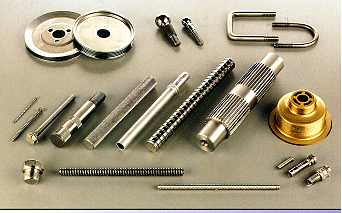

Special products such as U-bolt, J-bolts, Chamfers
4 models for planetary thread rolling only (single & double end)
also available
